Capabilities

Tool and Die Engineering

Our engineering department is staffed by experienced designers who leverage the latest technology and CAD software. We utilize industry-leading platforms such as SolidWorks and 3D Quickpress, along with in-house simulation software to ensure precision and accuracy in our designs and build.

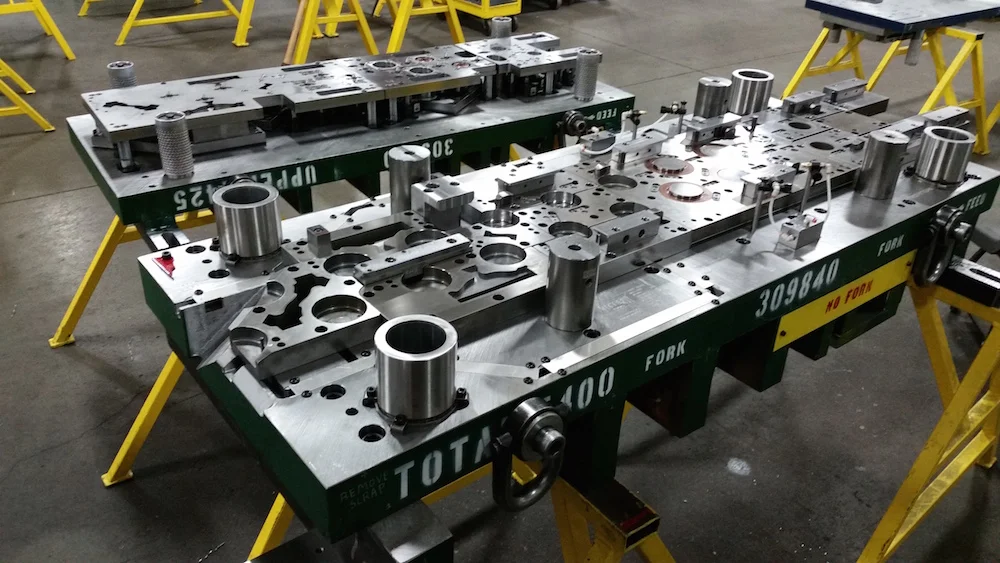

Metal Stamping Dies

Victory Tool excels in producing a diverse range of metal stamping dies, including line dies, progressive dies, draw dies, and transfer dies. We are equipped to build and test dies up to 140" in length, ensuring precision and quality in every project.

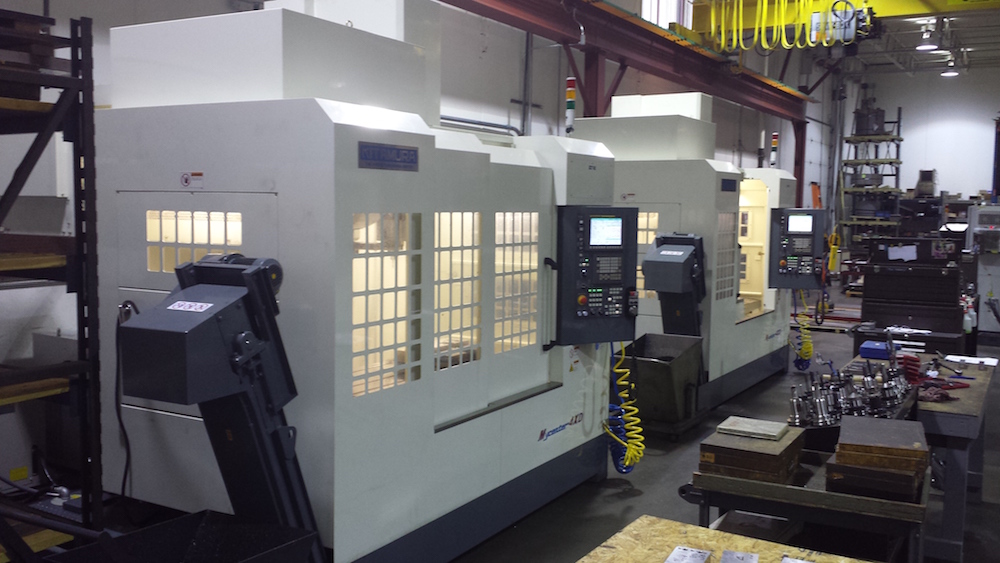

CNC Machining

Our commitment to efficiency is reflected in our use of advanced CNC machining technology, which allows us to deliver cost-effective solutions. Our facility is equipped with 40 and 50 taper vertical and horizontal machine tools, offering up to 126" X-Axis Travel, 95" Y-Axis Travel, and 35" Z-Axis Travel.

For more details, please refer to our facilities list.

Wire EDM

Our facility features Mitsubishi Wire EDM machines, capable of handling dimensions up to 36" x 80". These machines provide continuous 24-hour operation, meeting even the most demanding customer requirements while maintaining tolerances as tight as .0001".

For more details, please refer to our facilities list.

Quality Assurance

We employ rigorous inspection techniques throughout the tool-building process to ensure manufacturing accuracy. For projects requiring higher standards, our Zeiss CMM is utilized to inspect parts and generate detailed measurement and capability reports, ensuring your quality requirements are met.

Fixtures

In addition to our tool and die expertise, we offer design and build services for inspection fixtures and weld fixtures, enhancing our overall capabilities.

Thermoform Trim Tooling

With over 20 years of experience, Victory Tool is a trusted provider of Thermoform Match Metal tools. Whether you need single station trim, pierce, or progressive tools, we have the expertise and manufacturing techniques to complete your project on time and within budget.
